The Davington plateau lies just
westwards of old Faversham, beyond
the Westbrook. For many years
rumours have circulated about Late
Iron Age pottery up on the plateau,
and speculation about a hill fort.
There had also been speculation
about a medieval roadway and
possibly a small village in front of
Davington Priory (founded
cAD1154). Confusion also
reigned over the exact location of
Davington Manor, demolished
around AD1650 according to
Hasted. For 2010, the Faversham
Society Archaeological Research
Group (FSARG) designed a one
year research project to test these
ideas. This brief report outlines the
main findings: details are
on our website www.communityarchaeology.
org.uk.
Firstly, the Iron Age. On our
first day of field work in April 2010,
flint tempered ‘Belgic’ pottery was
found on the side of Dark Hill, the
cutting which goes through the
plateau east to west. This was joined
by many more sherds, some from
‘foraging’ and keyhole excavations
in the gardens of Stephens Close

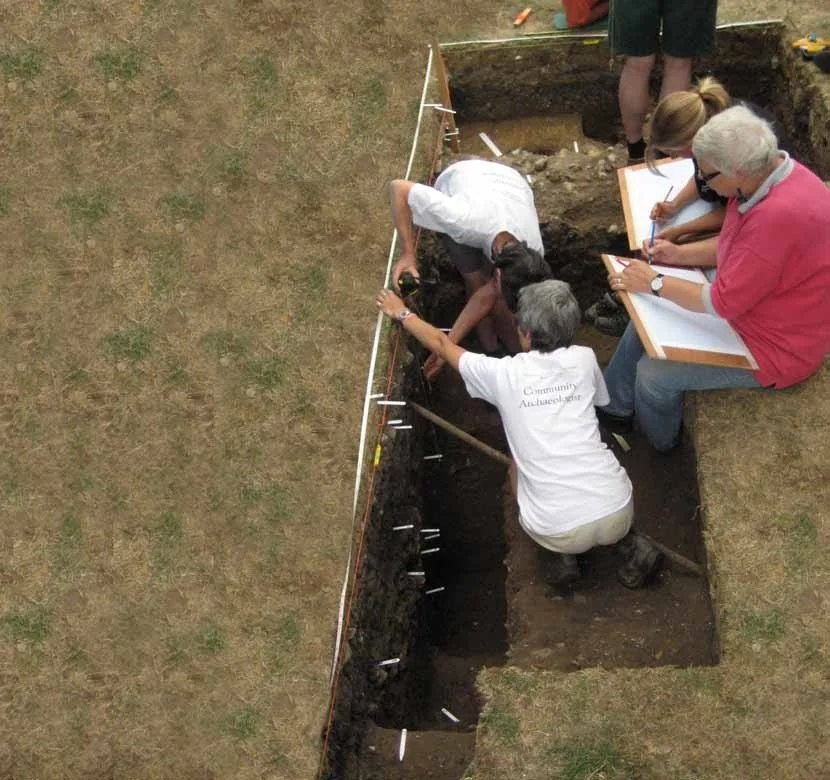

and others from one-day trenches
in Davington cricket field. Analysis
showed that some sherds were
middle and even early Iron Age;
others were early Romano British
(with a few tiny sherds of
Samian ware).
A major geo-resistivity survey of
the Cricket Pitch suggested
important features and although
one of our twelve-hour trenches was
disappointing (the curved
concentric ditch and bank turned
out to be a hedge clearance trench
filled with building rubble), the
other revealed a flint floored track
way running across the pitch,
bordered by a small V shaped ditch
to the west. We returned to this
feature in 2011 and will be reporting
on our findings in spring 2012. At
present we are seeing this as a late
Iron Age/Romano-British track.
The search for the ‘real’
Davington Manor was also
successful. When Stephens Close
was built in the early 1960s, rescue
archaeology was almost unknown,
all seemingly swept away except for
a 17th century brick and re-used
medieval stone wall with two
gateways in Mannerist style. One
of these gates has a plaque with the
date 1624. Locally, this wall has
been seen as a kitchen garden wall,
a belief I have always found
implausible, and made even more
unlikely by the presence of an
unrecorded substantial medieval
stone wall and 13th century gateway
tucked away in Stephens Close,
inside the area enclosed by the 17th
century wall.
Using the medieval wall as a
starting point, a number of small
scale excavations were carried out
and yielded demolition dumps,
underground structures, clearance
dumps, flint wall foundations and
courtyard/pebbled floor surfaces.
Not only had we found the site
of the actual manor as featured in
documents, but the demolition
material (decorative pantiles, glazed
bricks, 17th century glazed floor
tiles), suggested that the stone
medieval house had been
considerably refurbished in the late
Tudor-early Jacobean periods. In
all, we identified at least 4
The Davington Mysteries: a
community archaeology project
Dr Pat Reid, Community Archaeologist for the
Faversham Society, Director FSARG
Aerial photograph of the Davington Plateau in 1962
The metal detecting team
readying themselves for wor k
www.kentarchaeology.org.uk - Autumn 2011 - KAS Newsletter 3
demolition/conversion phases for
this unfortunate mansion. The
main one in the 1650s was only
a generation or so after
the refurbishment - perhaps
provoked by the rapid growth
of the gunpowder manufacturing
right on their doorstep
in the Westbrook valley?
Finally for our project, we were
given three days access to Davington
Priory, now the private residence of
Bob Geldof. Exhaustive geo
resistivity and metal detecting
surveys were carried out. The metal
detecting team produced a lively
collection of artefacts from the
Davington Fetes held on the
Paddock over the years but were
disappointed to find no medieval.
Apart from a possible circular dove
cote near the house, the geo
resistivity also failed to produce any
clear cut evidence for medieval road
or settlement.
What the resistivity survey did
show, however, was a strongly
marked collection of features in the
north part of the Paddock -
concentric circles and radiating
ditches which are almost certainly
prehistoric. Abundant evidence for
prehistoric occupation on the
Davington plateau was found in
nearly all of the sites investigated.
The finds were mostly Mesolithic
and included a tranchet adze and
many blades, but there were also
finds from most other post-glacial
periods. The prehistoric finds will
contribute to an Arch. Cant. paper
on the prehistory of the Westbrook
valley.
In October 2010 we held a one
day conference which brought a
happy end to a rewarding year. In
April 2011, an exhibition at the
Fleur de Lis Heritage Centre
included highly successful hands-on
Saturday sessions for families. All
excavation reports are now on
our website.
We are, of course, always
extremely grateful to Faversham
folk for their support and interest
- without this there would be little
point in what we do. But after this
particular year, I think that the folk
I need to congratulate are the
FSARG team. The sheer hard work
and professionalism (and the sense
of fun) are hard to beat: I am a very
lucky Director!
Aerial Photo library of KCC - please contact Heritage Conservation to view the collection.
Foundations and a cobbled floor -
part of the original Davington Manor
A selection of flint tools from the 2010 Davington excavations
4 Winter 2011 - KAS Newsletter - www.kentarchaeology.org.uk
During archaeological
monitoring of a now
completed new water main
installation by South East Water
near Stockbury, northeast of
Maidstone, archaeologists from
Kent Archaeological Projects
discovered the remains of two
ancient iron smelting works on the
Clay-with-Flint surface of the chalk
uplands. One of the works consisted
of two separate pits, each containing
two clay-built, funnel-like iron
smelting furnaces. The other,
much larger,
better preserved
and multiphase,
consisted of
five intercutting
pits t h a t
together created
a substantial
sunken-floored
s t r u c t u r e
containing at
least ten in-situ
and intact
furnaces of a
p r e v i o u s l y
unknown type and two iron-ore
roasting pits. Potsherds found
within the remains dated the works
to the Mid-to-Late Iron Age (c.150
to c. 50 BC).
Following discussions with South
East Water, the County Heritage
Conservation Group and English
Heritage, it was decided that the
remains were of national importance
and that sufficient excavation and
sampling had taken place to
characterise them in detail. It was
therefore decided to cease excavation
and preserve the unexcavated
remains in situ.
Along with flint- and grogtempered
Late Iron Age pottery the
site produced nearly half a tonne of
iron slag and smaller amounts of
‘bloom’ (the spongy conglomeration
of iron particles produced from the
ore at about 1200°C within the
furnace during firing). The bloom
would later be re-heated until red
hot and hammered into the required
shape by a blacksmith. The relative
inefficiency of the method meant
that the large amount of iron
still present within the slag went
to waste.
The furnaces were clay-walled
structures of approximately 0.32m
in height and 0.2m diameter at the
top, narrowing down to half or less
of that at the base, and looking like
upside-down chimney pots. The
walls were up to 40mm thick and
were scorched deep red on their
inside surface. Each furnace had a
hole knocked out at the base, this
being where the bloom was removed
after the firing (until their final
A half-sectioned ‘tapping’-type smelting furnace showing the adjacent
hollow into which the molten slag iron was conducted (4 x 0.25m scale)

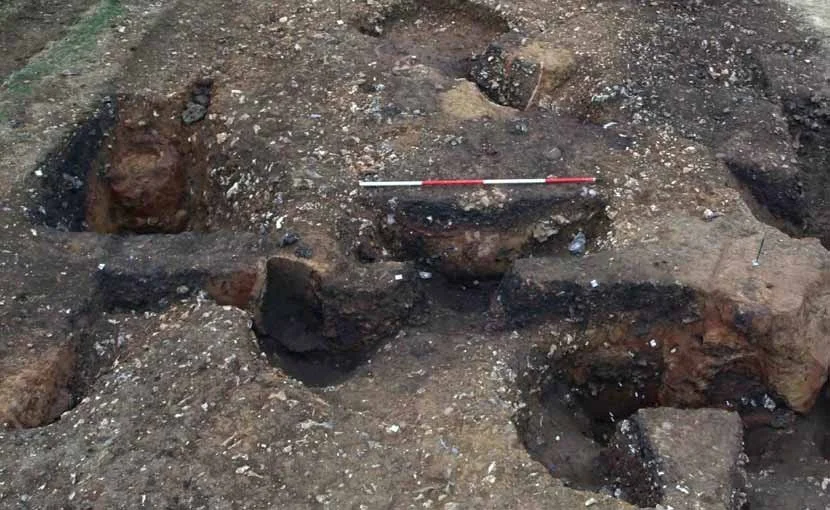

Partly excavated iron smelting furnaces situated around a central ore-roasting pit (beneath 1m scale)
Late Iron Age iron smelting
works found near Stockbury
by Tim Allen
www.kentarchaeology.org.uk - Winter 2011 - KAS Newsletter 5
abandonment the access holes were
re-sealed with clay prior to the next
firing). The shallow roasting pits
were used to heat the ore before it
was packed into the furnace, along
with much charcoal, which was then
ignited. It is thought that air had to
be blown with great force into the
furnace to reach the required
temperature, but no air holes were
observed in the Stockbury examples,
probably because they had been
situated at the front base of each
furnace, which had been broken out
to remove the bloom. In fact,
removal from anywhere else would
have been impossible because the
top-heavy furnaces were not free
standing, as are other known
examples, but were set into and
supported by densely packed clay,
with only the front part accessible
from within the pit.
Two kinds of furnace were
identified in the works, the ‘slag-pit’
type and the ‘tapping’ type, the
former being the earliest known
British type, the latter being a Late
Iron Age innovation that remained
in use into the post-medieval period.
In the ‘slag-pit’ type the molten slag
accumulated in the furnace base; in
the ‘tapping’ type the molten slag
was conducted into a basin-like
hollow cut adjacent to the furnace
base. In one example on the site the
solidified slag, still with a liquid
appearance, lay within the hollow
as if frozen in time for over two
thousand years (for further
information on prehistoric iron
smelting search online ‘Wealden
Iron Research Group’ and ‘English
Heritage, Pre-industrial Ironworks’).
The question of what kind of ore
was used was quickly identified as
of critical interpretive importance.
Were these works part of a satellite
industry associated with the welldocumented
Wealden Industry or
were they part of a separate industry
using a different source of ore? In
the former case, a supply system and
route serving the Stockbury area
with Wealden clay ironstone could
be postulated; in the latter case
another source for iron-rich ore had
to be identified. The answer was
found when Sarah Paynter, the
English Heritage expert on this
subject, discovered partly fired
pieces of ore amongst the piles of
waste slag iron. The ore consisted
of flint nodules surrounded by
metallic iron-rich accretions. Such
nodules occur commonly within
the Clay-with-Flint surface geology
of the area and enough evidence was
therefore available to identify the
Stockbury Industry as a separate
and independent industry, and to
provide the reason for its location
(smaller amounts of iron slag and
Iron Age pottery previously exposed
nearby in a ‘bloom pit’ at South
Street Road could now be
understood in this context).
As an environmentally responsible
organisation South East Water was
quick to recognise the archaeological
importance of this site and,
following consultation with English
Heritage and Kent County Council,
agreed to fund technical analysis of
the recovered materials prior to
the production of a report for
wider publication.
Stockbury furnace Figure (Final)
6 Winter 2011 - KAS Newsletter - www.kentarchaeology.org.uk
WHAT’S ON
KAS EVENTS
KAS CHURCHES COMMITTEE VISIT
Tonbridge School Chapel & Tonbridge
Parish Church
Saturday 28 April
Please meet at 1.45 for 2pm start at Tonbridge School
Chapel (postcode TN10 3AD). Parking available on
Tonbridge School Quad Avenue entrance off London
Road not High Street entrance. Parking also on local
roads near Tonbridge School and town car parks.
After the School visit, we will walk about 300 metres to
the Parish Church. Cars may be left on the School Quad.
There is a small disabled parking car park at the church
(postcode TN9 1HD).
The cost of the visits is £5, to include tea and biscuits at
Tonbridge Parish Church. Please register by emailing or
telephoning the Churches Visits Secretary, Jackie
Davidson - Jacalyn.davidson@BTInternet.com or 01634
324004.
Dates of all visits in 2012 can be found in the diary at
www.kentarchaeology.org.uk
KAS CHURCHES COMMITTEE STUDY DAY
The Oxford Movement & its Legacy
Saturday 14th April 2012, 10.00–16.00
Holy Trinity church hall, Folkestone
Three morning lectures including ‘The Oxford Movement’
by Dean Michael Chandler & ‘Medieval symbolism and
by Durandus’ Canon Christopher Irvin.
Three afternoon workshops looking at the Oxford
Movement & its legacy – studying documents from
Canterbury Cathedral Library, Holy Trinity church
and its documents.
£15.00 including lunch, tea and coffee.
For booking form go to: www.kentarchaeology.org.uk
Or by post from (include SAE) Mrs J. Davidson, 7
Chatsworth Rd, Gillingham ME7 1DS.
Tel: 01634 324004 (home);
email: jacalyn.davidson@btinternet.com
KAS Historic Buildings Committee
Visit to Knole on Tuesday May 1st 2012
at 10.30am.
The proposed visit will take in the Retainer’s Gallery, the
Gatehouse Tower, Pigeon Lofts and East Attics. These
areas are not normally open to the public. There will be
a charge of £15 payable to the National Trust. There is a
limit on numbers so if you are interested please either
email Mike Clinch at mike@mikeclinch.co.uk or
telephone 01322 524425. This visit will not be suitable
for anyone with mobility problems.
KAS LECTURES IN THE LIBRARY
Classes are on Mondays at a cost of £35 for
6 weeks starting after Easter
10.15-12.15
This class will look at the lives and careers of British men
and women who achieved personal success, or made a
contribution to national life, in the early twentieth
century.
14.00-16.00
This class will study the history of the American colonies
from the earliest voyages of exploration to the American
Revolution. Topics will include the role of the European
nations in American colonisation; the origins of the
Thirteen Colonies; their different characteristics; their
relations with the Native American Peoples; their
economic development; the wars of the eighteenth
century; the road to independence and the
Revolutionary war.
INVESTIGATING THE ROMAN ARCHAEOLOGY
OF KENT JOINT STUDY DAY organised by
University of Kent with the Council for Kentish
Archaeology and the KAS
Saturday 14 April
2.00 – 5.30 pm
Rutherford College, University of Kent, Canterbury
Publications on aspects of the history and archaeology
of Kent will be on sale on the day.
Topics include:-
»» East Farleigh Villa Excavations - Albert Daniels
»» East Cliff Villa, Folkestone - Keith Parfitt
»» Reculver and Dover Forts - Brian Philp
»» Roman Thanet - Ges Moody
Parking is available on the university campus.
Buses to the University run from close to Canterbury
www.kentarchaeology.org.uk - Winter 2011 - KAS Newsletter 7
WHAT’S ON
East station. Turn right into Station Road East, don’t
cross the bridge. Follow this road till you get to Pin Hill/
Rheims Way. Turn right for the bus stop. Stage Coach 4
runs to the University. The yellow Unibus leaves from the
bus station nearby.
Tickets are FREE for KAS members, Friends of the CKA
and KAR subscribers.
Tickets will be available on a ‘first come, first served’
basis, as space is limited.
Non-members tickets £5.00, cheques payable to C.K.A.
Please send S.A.E. to C.K.A. 7, Sandy Ridge, Borough
Green TN15 8HP.
EVENTS AROUND KENT
FRIENDS OF CANTERBURY
ARCHAEOLOGICAL TRUST
Saturday 28 January
Frank Jenkins Memorial Lecture
The annual review of the past year’s work by the
Archaeological Trust by Dr Paul Bennett (Director,
C.A.T.) A joint event with the Canterbury
Archaeological Society. 6.00pm.
Thursday 16 February
An update on Roman Canterbury
A symposium with speakers from Canterbury
Archaeological Trust
6.30 pm, Keynes College, Lecture Theatre 5,
University of Kent.
Thursday 22 March
Policing the Past: Seven Years of Tackling
Heritage Crime in Kent and beyond
Andrew Richardson (Finds Manager, C.A.T.)
7.00 pm, Canterbury (details will be available later).
For all events which do not have a stated charge, FCAT
requests a donation of £2.00 for members, £3.00 for
non-members, and £1.00 for students, to cover
costs and to help to support the activities of the
Archaeological Trust.
CRAYFORD MANOR HOUSE HISTORICAL &
ARCHAEOLOGICAL SOCIETY
Saturday 11 February
The Suburban Home Front in the Second World War
rationing, clothes, Dig for Victory, gas masks, the -
blackout and more. Illustrated with artefacts - Mike
Brown.
Saturday 10 March
Traditional Kentish Building Materials
An illustrated presentation examining, through
vernacular architecture, the contribution that Kent’s
natural and traditional materials have made in creating
the texture of the local landscape - Richard Filmer .
Saturday 21 April
AGM and President’s Lecture
All meetings are held at The Baker Trust Hall, Maxim
Road, Crayford at 7pm for 7.30pm. Non-members are
welcome to attend lectures at a fee of £3 per lecture
(except for December when there will be an additional
charge).
Enquiries to Mrs. J. Hearn-Gillham - 01322.551279 or
e-mail janet.hearn-gillham@ntlworld.com. Details of the
Society’s summer excursions from Mr. L. Davies -
01322.525335.
WATERINGBURY LOCAL HISTORY SOCIETY
15 February
Queen Victoria’s Dreadful Uncles - Sheila Boyd.
21 March
Some Historic Kentish Towns - David Carder.
18 April
The Great Flood of 1953 - Bronwen M Sadler.
20 June
AGM followed by The Queen’s Jubilee - Peter Hartley.
We also organise a coach trip to a venue of interest, this
year it will be held in May. The Society meets in the
Village Hall at 7.40pm.
Visitors are welcome at £2.50.
BEXLEY ARCHAEOLOGICAL GROUP
Saturday 28 January
Ceramic Building Materials Workshop led by Dr Phil Mills
of University of Leicester
Cost £25 (non-members of BAG), £20 members.
Saturday 25 February
Glass workshop led by John Shepherd
Cost £20 (non-members of BAG), £15 members.
To be held at Bexley-Sidcup Conservative Club,
19 Station Road, Sidcup DA15 7EB.
To book a place please contact
Pip Pulfer pipspad@hotmail.co.uk or
call 07961 963 893. www.bag.org.uk
8 Winter 2011 - KAS Newsletter - www.kentarchaeology.org.uk
Thank you to all of you who have sent in
your renewals by cheque. If you haven’t
done so yet please do so as soon as
possible. You will be aware that we have
not raised the subscriptions since 2008
but, because of increasing postal costs,
we might have to in the next year or so.
We have been discussing ways to keep
costs down and one idea under serious
consideration is reducing the number of
newsletters from 4 to 3 a year. We value
our membership – without you there would
be no Kent Archaeological Society!
We are also thinking about distributing
information and perhaps newsletters to
members by email – if you agree with this
please let me know – by email if possible.
We will not disclose your details to any
other organisation.
Please remember to send any changes of
addresses etc. to me either by post or
email. membership@kentarchaeology.org.
uk
I look forward to your continued support of
our splendid Society.
I am very pleased to welcome the
following new members:
Mrs S Bartholomew, Ashford, Kent
Mr D M Boys, Monmouth
Ms B Coddington, Victoria, Australia
Miss R M Delman, Cambridge
Mr R E Emmett, Sittingbourne, Kent
Mr & Mrs S Golding, Maidstone, Kent
Mrs S Hall, Gravesend, Kent
Miss H Meehan, Maidstone, Kent
Mr M Simmonds, Maidstone, Kent
Mrs T Sowerbutts, Gloucester
The majority of new members have joined
by downloading the application form
from the website but it is equally
important that blue application forms
are available in other locations and taken
to conferences etc. Please contact me if
you would like a bundle.
Shiela Broomfield, 8 Woodview
Crescent, Hildenborough, Tonbridge,
Kent TN11 9HD telephone: 01732
838698 email
membership@kentarchaeology.org.uk
MEMBERSHIP MATTERS
The theme of ‘Accommodation in
Medieval and Early Modern
Buildings’ drew an audience of around
80 to the annual one-day Historic
Buildings Conference held on 15
October last year in Harrietsham
Community Centre.
First was the welcome return of
speaker Andrew Linklater, of
Canterbury Archaeological Trust. In
his presentation, ‘The House Divided
– The Use of Internal Space of
Buildings as Through Archaeology’,
Andrew drew attention to the scarcity
of hard evidence from which to deduce
how space was used in Medieval
domestic life, thus explaining the
significance of both documentary
research and micro-archaeology when
trying to establish what activities had
taken place. He described the types
of materials and objects found during
excavation of layers of occupation, and
explained the clues that these finds
provided when trying to interpret the
functions of internal space. During
the discussion session that followed,
the knotty problem of the prevalence
of detached kitchens in Kent was raised,
a topic which was the subject of lively
debate throughout the day.
Next Sarah Pearson, buildings
historian, formerly working with the
Royal Commission on Historic
Monuments of England, and author
of ‘The Medieval Houses of Kent: An
Historical Analysis’, spoke on ‘The
Provision of Services in Medieval
Rural and Urban Kentish Houses’.
Sarah detailed the evolution of the
layout of medieval dwellings, offering
suggestions as to how space might have
been used. She drew attention to the
differences between urban and rural
buildings. Although there was generally
more conformity in the floor plan of
urban dwellings, identifying the precise
functions of rooms proved even more
difficult because of the likelihood of a
greater variety of activities taking place
in urban premises. Sarah believed that
in the past there had been too
standardised an interpretation of
utilisation of rooms/space in Medieval
buildings.
The third talk was given by copresenters:
Catherine Richardson of
the University of Kent, and Tara
Hamling of the University of
Birmingham. Their presentation was
entitled ‘Towards a Material History
of Early Modern Accommodation –
Houses, Objects and Daily Routine’.
Catherine spoke on the varied and
flexible use of space by ‘middling’ urban
households from the late 16th century
to the early 17th century. Tara focussed
on differences between the contents of
urban and rural dwellings. Both
speakers drew upon their extensive
examination of archival material to
provide a vivid picture of domestic life
in households of the period. Their
diverse and diverting evidence
illustrated the challenges of
disentangling the complexities of what
accommodation could mean.
After lunch there were
presentations on three local
topics. Paula Jardine-Rose of the
Wychling, Doddington & Newnham
Historical Research Group talked about
the first community dig that the Group
had organised, which took place in
Newnham. She reported on the
findings, the most notable being the
discovery of a Roman road.
Next was Deborah Goacher,
member of the Historic Buildings
Committee and Maidstone
Archaeological Society. The title of her
presentation was ‘Another Kentish
Medieval House: The Cottage, Little
Buckland’. She shared the findings of
the research she had undertaken on her
KAS HISTORIC BUILDINGS
CONFERENCE by Angela Davies
YOU & YOUR SOCIETY
www.kentarchaeology.org.uk - Winter 2011 - KAS Newsletter 9
New Chair
A new Chairman of this committee,
Dr Mark Bateson, was elected on 1
October 2011 in place of Mr Pat
Harlow, who was thanked in absentia
for over 10 years’ hard work. Dr
Bateson was proposed by Mr T Connell
and seconded by Mr C Ward: he is
moving from Canterbury to work as
Community History Officer, a
new post, at the new Kent
Archive building in Maidstone.
Volunteers needed
Dr P Cullen, Academic Advisor, has
moved to the University of the West
KAS member Dr John Physick wrote
to ask if the Churches Committee
would be interested in recording church
benefaction boards, some of which are
in increasingly poor condition. The
Monumental Brass Society records
unique house, a building that had been
constructed of stone and timber in one
build around 1400.
Patricia Reid, Community
Archaeologist for the Faversham
Society, spoke on ‘Finding a Lost
Manor: Search for the Real Davington
Hall’. In her presentation she
illustrated the adage - particularly true
in archaeology - that things are not
always what they seem. Pat described
a community-based project aimed at
finding out more about Davington Hall
and its relationship with surviving 17th
century walls and gate. This led to the
discovery that the building demolished
in 1968 and generally thought to have
been Davington Hall had, in fact, been
a farm bailiff’s house. It had been
constructed of stone from the original
manor house located elsewhere on the
site and demolished in the 1770’s.
Finally, Christopher Proudfoot,
Chairman of the Historic Buildings
Committee and the Conference,
rounded off by expressing thanks to
the speakers for contributing to such
an absorbing and informative day, and
to Historic Buildings Committee
member, David Carder, and his team
for arranging the event.
of England to work on names, so that
work on his place-names books on Kent
has slowed. However, he is helping to
create a searchable electronic names
database based on 1377-81 poll-tax
assessments, which rely heavily on
place-names used as surnames. He
would like volunteers to help turn his
paper records into Word or Excel
format. Is there anyone out there who
might respond? His email address is
Paul2.Cullen@uwe.ac.uk . He thought
that the Committee should consider
enlarging its interests to cover names
as well as place-names. After a full
discussion it was agreed that such a
small committee should keep to the
narrower focus of place-names only.
November Study Day
This committee decided unanimously
to run a fourth Place-Names Study Day
on a Saturday in November 2011. This
will take place at Rochester, date,
speakers and subjects to be arranged,
but they will be Kent-based.
Website section
Mr T Connell suggested that, like the
Churches Committee, we should have
a section on the KAS website on which
to display the talks given at previous
study days.
The next meeting will take place at the
KAS Library, Maidstone Museum, on
Saturday 10 March 2012.
brasses and the Church Monuments
Society records memorials but, as far
as I know, there is no specific society
for benefaction boards. These are
recorded by NADFAS when they
undertake their comprehensive surveys
and are generally included in church
and parish histories.
This is something that can be
recorded on future Church Visits and
then added to the archive on the
churches of Kent which we are building
on the Churches Committee section
of the KAS website. If members have
any pictures or reports that include
benefaction – or are willing to
take pictures of any in their
local churches – please contact
research@kentarchaeology.org.uk or
write to the secretary of the Churches
Committee, Dr Paul Lee, 22 Arcadia
Road, Istead Rise, Gravesend, Kent
DA13 9EH. We would also love to
hear from you, if you know of anyone
else collecting this information!
The visit to Luddesdown and Cobham
churches on a late September afternoon
could not have been blessed with better
weather. John Bailey, architect for both
churches and a past chairman of SPAB,
gave an excellent and succinct account
of each church while Philip Lawrence
gave an equally excellent and well
informed précis of the brasses at
Cobham. Both churches were
connected with a great house and an
important family, but are different in
atmosphere and size.
St Peter’s Luddesdown is a Saxon
foundation but owes many of its
features to the patronage of Marie, wife
of Aymer de Valance, Earl of
Pembroke in the mid fourteenth
century. However, today’s visitor will
be struck most by the Victorian
decorative scheme, much of it dating
from the restoration carried out in
1865-6 by Alfred Stump. Unusually,
Visit to Luddesdown
and Cobham churches
by Gill Wyatt
Benefaction Boards
in Churches
by Mary Berg, Chairman,
Churches Committee
CHURCHES
COMMITTEE
PLACE-NAMES
COMMITTEE
COMMITTEE ROUND UP
COMMITTEE ROUND UP continued
10 Winter 2011 - KAS Newsletter - www.kentarchaeology.org.uk
this ‘Victorianisation’ has not
succumbed to later changes in taste.
The result is a decorated and intimate
interior which gives the church a
welcoming atmosphere. Of interest to
bell ringers, there are two medieval bells
surviving and a pole ladder (not for the
fainthearted!) which it is hoped will
soon be saved and replaced by a more
modern one. Further late Victorian
work was done by Heaton Butler and
Bairn, between 1870-94, including the
baptistery with its mural of Christ
blessing the children.
Cobham, by contrast, is a much
larger and grander church with the
largest collection of brasses in the
country. Perhaps the most striking
feature here is the alabaster and black
marble Brooke tomb commemorating
George Brooke, Lord Cobham and his
wife Anne Bray. Round the base are
figures of their ten sons and four
daughters, all meekly kneeling except
for the (reputed) black sheep, George,
who is crouching on one knee. The
tomb was built in 1561, well in advance
of Lord Cobham’s death, and is sited
on the exact place of the medieval high
altar, a statement of reformation
sentiment at the beginning of
Elizabeth’s reign. Unlike Luddesdown,
this church is a grand statement of
family pride and status.
The Churches Committee are to be
congratulated on arranging yet another
interesting and enjoyable outing, and
we must also thank the congregation
of Cobham for a delicious tea!
“There was a fair attendance of
members at the annual meeting of
the Kent County Photographic Record
and Survey, which was held in the
Bentlif Art Gallery of the Maidstone
Museum on Wednesday afternoon.”
Maidstone Gazette, June 1912
A cutting from the Maidstone Gazette
reporting the 1912 annual meeting of
the Kent Photographic Record and
Survey meeting is found among the
papers of the Hon. Henry A. Hannen
in a section which consists mainly of
lists. There are lists of historic houses,
castles and churches in Kent as well
as lists of sources and images relating
to them. The lists represent Hannen’s
participation in the fashion for
surveys and show an awareness of
photography’s potential for recording
and sharing information.
The Kent Photographic Record
and Survey was launched with the
support of the South Eastern
Scientific Societies in 1904. . The
purpose the Survey was: ‘to preserve
by photographic processes, records
Image Name
NOTES FROM THE ARCHIVE The Curator, the
Camera and the
Survey
From the Papers of the
Hon. Henry A. Hannen (d. 1933)
by Pernille Richards
NEW BOOK
www.kentarchaeology.org.uk - Winter 2011 - KAS Newsletter 11
of objects of archaeological, historical,
literary, and scientific interest connected
with the county, and to deposit such
records in the County Museum at
Maidstone, and in other places where
they may be suitably preserved and
readily accessible to the public.’ A
major contributor to the Survey was
the Maidstone and District Institute
Photographic Society, which is still
going strong as Maidstone Camera
Club, and whose contributions to the
survey are still in existence. The KAS
endorsed the Survey in the Proceedings
of 1904 and it is recorded that they
offered a number of negatives as a
contribution. In the spirit of the time
the Society also had an honorary
photographer for a number of years,
E. C. Youens Esq. Individual members
of the KAS were more directly involved
in the project. Sir Martin Conway was
Vice President of the Survey and
presided over the 1912 meeting. The
Survey was mostly interested in
recording buildings; in 1912 Mrs
Snowden Ward contributed prints of
Canterbury Cathedral and the
Maidstone Society worked on old and
timbered buildings, as well as locks and
bridges on the Medway. However,
The Stones of Reculver Country Park
(ISBN: 978-0-9561690-2-0, A5, 41pp)
and The Geology of Reculver Country
Park (ISBN: 978-0-9561690-1-3, A5,
53pp). By Geoff Downer, published
by GeoConservation Kent, 2011.
£4.50 each.
The study of building stones in Kent
owes much to John Archibald’s
pioneering work Kentish Architecture
as Influenced by Geology, published in
1934. Nationally during the last 30
years or so many popular guides have
been published, often in the form of
“town trails”. Dr Eric Robinson has
contributed to several, including in
Kent the Faversham Stone Trail
(Faversham Society, 1994) and The
Building Stones of Maidstone
among the prints contributed that year
was a set of 26 images by Mr. H. J.
Elgar of Anglo-Saxon jewellery. These
were good enough to merit mention.
Mr. Elgar had been appointed as the
Clerk and Curator of the KAS collection
at Maidstone in 1905 after the
resignation of George Payne. He also
held the post of Assistant Curator at
Maidstone Museum. Elgar was a keen
photographer and is mentioned in the
1907 report of the Curator and
Librarian, J. H. Alllchin, as frequently
taking part in the excursions of the
local Natural History Society and
photographing geological features,
antiquarian objects and ‘specimens of
Natural History.’ Maidstone Museum
holds a series of correspondence, from
the years ca. 1913-14, between Mr
Elgar and G. Baldwin Brown concerning
the Anglo Saxon Material from Bifrons
and Sarre. Baldwin Brown requested
lantern slides and photographs from
Elgar and these enabled him to study
the material from Maidstone in detail
from his base in Edinburgh. Images
convey more than words, especially in
the study of art. The Bifrons material
was extensively used in Vol. 3 of The
Arts in Early England, published in
(Maidstone Museum, 1998).
In The Stones of St Augustine’s
Abbey, Canterbury (2009), KAS
member Geoff Downer studied a single
site, and he adopts the same approach
in The Stones of Reculver Country
Park.
Concise historical accounts are given
of the two monuments - the Roman
fort and medieval church - with
building stone trails linked to detailed
plans. Each type of stone is illustrated
and fully described, as a building stone
and geologically. The Millenium Cross
- heavily weathered after just 11 years
- and the stones used for the local sea
defences are also included.
I visited the site and found the guide
easy to use and very informative,
suitable both for novices and the more
experienced. Together with its
companion guide, The Geology of
Reculver Country Park, it can form the
basis of an enjoyable day out (in good
weather).
My only niggle is that there are no
bibliographies, but otherwise both
guides are produced to a very high
standard in full colour with many
photographs and diagrams and
represent excellent value for money.
The guides can be obtained from
GeoConservation Kent, 6 Manor Close,
Canterbury, CT1 3XA at £4.50 each, or
£8 for both. The St Augustine’s guide is
available at £3.95. Post and packing is
included - cheques payable to Kent RIGS
Group.
1915 and in the prefatory note to the
volume Mr. Elgar is thanked for his
contribution of information and
‘photographs of much value.’ In 1914
Baldwin Brown was given permission
to photograph the Anglo Saxon
collection, so the resulting images were
probably the ones to appear in his 1915
book rather than the research
photographs supplied by Elgar.
Maidstone Museum holds some
of Elgar’s photographs, but
unfortunately it doesn’t look as if any
of his Anglo Saxon images are
among a collection of recently digitised
images. A few have no identification,
but many contain the initials
C.E.F and some are clearly inscribed
with the name N.C. Cook, 1931.
Elgar’s Anglo Saxon images may yet
come to light but for the moment
it looks as if they have suffered
more from the passage of time
than the objects they were
supposed to provide a record of.
With thanks to Maidstone Museum and
Bentlif Art Gallery and Giles Guthrie,
Collections Manager, for use of photos
and access to letters.
Andrew Mayfield: andrew.mayfield@kent.gov.uk; 07920 548906 or 01622 696919
www.facebook.com/archaeologyinkent and www.kent.gov.uk/randallmanor
12 Winter 2011 - KAS Newsletter - www.kentarchaeology.org.uk
Community Archaeology News from Kent
by Andrew Mayfield, Kent County Council’s Community Archaeologist
Greetings! From October last year Kent County Council created a two-year community archaeology post, part-funded
by the Heritage Lottery Fund. As the former community archaeologist for Shorne Woods Country Park, I will be
running a series of events over the next two years that YOU can get involved with.
The Medway Valley LiDAR survey project (see article in last newsletter)
Working with Valley of Visions and the Medway Mosaics Project we will be groundtruthing the results of the HLFfunded
LiDAR survey over the next two years. This will involve a series of woodland walks to find, check and record
features, followed by a series of geophysical surveys and small scale excavations at locations including Shorne Woods
and Boxley Warren.
The Shorne HubCAP Project
This exciting new project at Shorne Woods Country Park will build on the
work of the Shorne Woods Archaeology Project. We will be running a free
training programme over the next two years that is open to all. This will include
sessions on pottery identification, worked flint, conservation of finds, geophysical
survey, Total Stations and a series of field archaeology taster sessions during
our summer dig. We will be creating a series of Finds Boxes (SWAP boxes) to
take to local schools and events and designing some new tactile interpretation
for visually impaired visitors to the Park. We will hold a series of Local Groups
Conferences, where archaeology groups across Kent can come together to give
short presentations on their current projects. There will be opportunities to
participate in a test pit survey of a large new Mesolithic site discovered in Shorne
Park and the excavation of a second lost building, Randall Hall.
Randall Manor excavations
In 2012 and 2013 excavations will continue on the site of Randall Manor. This community archaeology dig has now
run for six seasons and attracted hundreds of volunteers each year. The dig is free to attend and no previous experience
is necessary. We now have a good understanding of the layout and phasing of our main medieval buildings. An early
aisled hall is extended with the addition of a stone cross wing, built of ragstone and flint with greensand mouldings.
This cross wing is in turn added to with a further wing, containing a garderobe. These buildings are connected by a
yard surface to a detached kitchen block. We have received reports on the pottery, bone and tile assemblages from the
first five years and an interim report on the archaeology of the first six years is due in the spring of this year.
Getting people involved
For me, the most important part of this new post is getting people involved across the county in the archaeology of
Kent. The HubCAP project has a large supply of equipment it can lend out to groups. If there are particular free training
sessions that you would like us to run, then do get in touch. Likewise, if you are holding a dig or event and would like
help in advertising it then please contact me. We have a Shorne News email ring that reaches over 300 people and
groups, a facebook page with over 500 ‘likes’ and the will and enthusiasm to spread news and opportunities to as many
people as possible. Look forward to hearing from you!
www.kentarchaeology.org.uk - Winter 2011 - KAS Newsletter 13
The Hasted Prize, inaugurated in 2007, is a biennial prize
awarded by the KAS for what is assessed by a panel of judges to
be the best thesis on an aspect of the archaeology or history of
the historic County. The purpose of the Prize is to encourage
research at a higher level on the County’s past, and to rescue
academic theses that merit publication from the comparative
obscurity of university library shelves. The Prize is worth £3000;
£1000 goes directly to the successful entrant, and £2000 is
retained by the Society to be used as a supplement towards the
cost of publication once the work has been accepted by a
publisher. Two books have been published with the help of the
Hasted Prize.
The Hasted prize for 2011 has been awarded to Dr Alison
Klevnäs for her Cambridge PhD thesis (2010): ‘Whodunnit?
Grave robbery in early medieval northern and western Europe’.
The thesis draws on recent, mainly German, literature on grave
robbing in central Europe and then closely examines and
analyses similar practices and processes in Thanet during the
7th century. All copies of theses submitted for the Hasted Prize
are available in the Society’s Library at Maidstone Museum.
HASTED PRIZE
Letters to the editor...
Dear Editor
Staff at Dartford Borough Museum
and Dartford Library would like to say
a big ‘thank you’ to the people who
were kind enough to contact us with
answers to our questions about the
mystery photo of a royal visit to an
unknown town in Kent, which
appeared on the back page of the
autumn Newsletter. The first two
replies were received from KAS
members who actually live in the
street itself!
We now know that the photograph
shows Stone Street in Cranbrook, at
its junction with the High Street. The
central footpath leads up to the church
and the people who appear above the
bunting are actually standing in the
raised churchyard. As to the details of
the actual occasion, we have Dr Phil
Betts, President of the Cranbrook and
District Local History Society, to thank
for informing us that it shows the visit
of Princess Christian of Schleswig-
Holstein on 14 July 1906. She was one
of Queen Victoria’s daughters and
undertook much charity work. On this
occasion she had visited the church to
unveil a new East Window, dedicated
to the Tooth family, and was going on
to open the first section of the National
Sanatorium, later known as Benenden
Chest Hospital. Rodney Dann, the
Curator of Cranbrook Museum,
has also been very helpful and
we are currently arranging
for a copy of the hitherto
unknown image to be lodged in his
Museum’s archive.
Dr Mike Still
Assistant Museum Manager
Dartford Borough Museum
Dear Editor
Some years ago when I was embarking
on my thesis ‘Elizabethan and Jacobean
Deer Parks in Kent’ I asked Newsletter
readers to contact me if they had
information about individual parks or
might offer me access to explore former
park boundaries etc. I had a very
encouraging response from several KAS
members, I would now like to thank
all those involved, having now
successfully achieved my doctorate. I
am still very interested in the subject
so would welcome further exchanges.
Many thanks to all who have helped
me and given encouragement.
Susan Pittman
Dear Editor,
Reading Pennille Richards article on
the West Farleigh sparrow club
(Autumn 2011) reminds me of two
family stories. In 1933 my mother went
to live with her parents in a house near
the North Pole pub on the Teston/
Wateringbury border. One particular
day when the men came along to shoot
the sparrows roosting in a holly tree in
the garden, my Gran, who was a
passionate animal lover, ordered the
men off in no uncertain terms.
Although the men tried to point out
the benefits of their sport, Gran,
standing less than five feet in height,
was not unnerved by a group of armed
men and told them to ‘never come back’.
Nice one Gran! It happened at dusk
sometime between 1933 and WWII.
The article also mentioned the capture
of butterflies. I presume they might
have been the cabbage white. My
brother has told me that during the
war children were rewarded by their
school for the most cabbage whites that
could be caught with the nets provided.
He said the creatures were so numerous
‘it was like walking through a snow
storm’.
Sandra Manser
14 Winter 2011 - KAS Newsletter - www.kentarchaeology.org.uk
In the Autumn 2011 Newsletter
‘Celebrating Boxley Warren’ outlined
this Heritage Lottery Funded project,
which includes an enhanced heritage
landscape survey of the site.
Commissioned by Boxley Parish
Council and the Mid-Kent Downs
Countryside Partnership (in
conjunction with the Heritage Section
of Kent County Council) and
undertaken by Nicola Bannister,
landscape archaeologist, here is an
overview of the survey’s results. The
aim is that further study will be
undertaken by the local community.
The features range from the
prehistoric period to the modern; from
crop marks to extant earthworks. They
are evidence of how this part of the
Medway Valley and the North Downs
was exploited from earliest times. The
LiDAR survey of the Lower Medway
Valley (see p2 and 3 of the Autumn
Newsletter) just clips the western end
of Boxley Warren, but it does show the
flint and chalk pits within West Field
Wood as well as traces of
lynchets following the contours of
the escarpment.
On the edge of the wood and close
to the ancient track, the ‘Pilgrim’s
Way’, is the White Horse Stone, an
up-ended sarsen stone, thought to be
the remains of a Neolithic long barrow.
Boxley Warren is a landscape
through which people have travelled
for thousands of years. The ‘Pilgrim’s
Way’ follows a track along the foot of
the Downs escarpment and is probably
an ancient route along the edge of the
settled and cultivated lands in the vale.
The farms and small settlements here
had links to grazing wood pastures on
the top of the Downs and evidence of
these links are seen in the sunken
hollow ways which wind their way from
the vale to the top of the escarpment.
Boxley Warren has several of these yewlined
routes; one runs up the slope
from the ‘Pilgrim’s Way’ skirting the
rifle targets.
Both Boxley and Boarley Warren
have been used for military training
from the late 19th century. The remains
of the rifle targets lie partly within
scrub. They comprise two large mounds
with a levelled platform in between.
The Rifle Range was built in 1885 on
land belonging to Boarley Farm, for
use with small-arms fire by regiments
from the barracks in Maidstone. It was
in use for the First World War but fell
into disuse between 1933 and 1938,
being reinstated during the Second
World War. Nearby in the pasture field
close to Westfield Wood are cropmarks
of former foxhole dug outs used in the
Second World War for field training.
The Warren may have also been the site
of one of the top secret hideouts which
were to be used by resistance fighters
in the event of a German invasion.
The woods and scrub along the top
edge of the Warren hide quarries, pits
and deneholes. One of the quarries
close to the Lidsing Road had a limekiln
and small cottage and was probably in
use in the 18th century according to
historic map evidence. The sites of two
or more dene-holes (or chalk wells)
were located along the northern
boundary of the warren on the edge of
the arable fields. Interestingly, these
dene-holes were cut across remains of
banks and lynchets running along the
top of the wood, thus pre-dating the
holes.
The survey has only highlighted the
heritage resource preserved at Boxley
Warren. As part of ‘Celebrating Boxley
Warren’ there will be opportunities for
local people to undertake more detailed
field surveys, excavations, archive and
oral history research. Contact Mike
Phillips, Mid Kent Downs Projects
Officer for further information on
01303 815170, go to www.
midkentdowns.org.uk or find us on
Facebook – search for ‘Friends of
Boxley Warren’.
BOXLEY WARREN - heritage survey results
Local volunteer s attending a heritage
tr ail guided walk led by Nicola Bannister
Site of the underground structure, marked by the thorn tree
www.kentarchaeology.org.uk - Winter 2011 - KAS Newsletter 15
‘the most singular looking thing I ever
saw. An immense house stuck all over
with a parcel of chimneys, or things
like chimneys, little brick columns
with a sort of cap on them at the top
to catch earwigs’.
William Cobbett, riding through
Hadlow in 1823.
Hadlow Tower, or May’s Folly as it is
affectionately known, once formed part
of a grand house in the Romantic
Gothic style built in the late 18th and
early 19th centuries by Walter May
(formerly Barton), a yeoman farmer,
and was erected on the site of Hadlow
Court Lodge, a much older manor
house existing in the 16th century but
having unknown origins. The house
was designed by a Mr J Dugdale to
an architectural style promoted by
Hugh Walpole when he built
Strawberry Hill at Twickenham. The
castle and ornamental gardens covered
6 acres with many specimen trees,
beautiful lawns and borders.
The Grade 1* Listed Tower at
Hadlow Castle was commenced in
1838 by Walter’s son and heir, Walter
Barton May, to a design by naval
architect George Ledwell Taylor. It
bears a striking similarity to the
erstwhile tower at Fonthill Abbey,
Wiltshire; however, Hadlow Tower’s
foundations were to prove much
sounder than Fonthill’s, which
collapsed in 1825. Built of brick and
rendered with so-called Roman
Cement, when complete with its
Lantern, the octagonal-shaped tower
stood 53 metres high (170ft),
commanding the local landscape.
The house and estate lands passed
through several families during the
intervening years until the estate was
split up and sold in the early 20th
century. Since the 1840s only minimal
maintenance has been carried out to
the Tower, with the inevitable decline
in the fabric of the building. In the
Second World War it served as a
vegetable store and a lofty observation
post for the Observer Corps and Home
Guard. It was doubtless used as a
landmark by Luftwaffe pilots on their
way to London, who dropped bombs
in nearby fields.
In 1951 the main building of the
castle with its ‘arches, groins,
ramifications and various flowers of
Gothic grandeur’ was tragically
demolished for building materials. It
was only the timely intervention of
Bernard Hailstone, a local portrait
painter, who purchased the Tower and
the remaining courtyard buildings, that
prevented its demise.
After 10 years of campaigning by
the Save Hadlow Tower Action Group
the Tower is at long last being restored
by the Vivat Trust, with money
from the Heritage Lottery Fund and
English Heritage amongst others. In
order to safeguard its future the interior
of the Tower will be fitted out for
holiday accommodation. The Action
Group are responsible for the design
and running of the ground floor Visitor
Centre, which will be open to the
public 28 days each year when the
restoration is complete.
The Trustees of the Allen Grove
Fund (administered by the KAS for
projects for the purposes of research,
preservation or enjoyment of local
history), awarded a grant of £400 to
the Hadlow Tower Action Group for
the cost of display panels. The group
is actively seeking donations towards
this project and further
information is available from their
website www.hadlowtower.com.
HADLOW TOWER –
AN ARCHITECTURAL ICON
Image from the es tate sale of 1919
Published by the Kent Archaeological Society, Maidstone Museum and Bentlif Gallery, St Faith’s Street, Maidstone, Kent. ME14 1LH.
16 Winter 2011 - KAS Newsletter - www.kentarchaeology.org.uk
If undelivered, please return to
S. Broomfield, 8 Woodview Crescent,
Hildenborough, Tonbridge, Kent TN11 9HD
Copy deadline for the next issue is 1st Mar 2012
The editor wishes to draw attention to the fact that
neither she nor the Council of the KAS are answerable
for opinions which contributors may express in their
signed articles; each author is alone responsible for
the contents and substance of their work.
EDITOR: LYN PALMER
55 Stone Street, Tunbridge Wells, Kent TN1 2QU
Telephone: 01892 533661
Email: newsletter@kentarchaeology.org.uk
Have you just
joined the Society ?
Do you wish you could
collect all the back issues
of Archaeologia Cantiana?
Now you can have 125 volumes
of Archaeologia Cantiana at the
amazingly low cost of £31 for
individual members and £76 for
institutional members on the KAS
Sesquicentennial DVD.
––––––––––––––––––––––––––––––––––––––
To order your copy, send a cheque
payable to Kent Archaeological
Society to Peter Tann, 42 Archery
Square, Walmer, Deal CT14 7HP.
Thames Defence
Research
Group
This informal organisation
provides an umbrella for
continuing - and expanding
- research of the generality of the
Thames defences at a serious study
level, with both academic and
popular outputs. Related strategic
industries in the Thames area may
come to be embraced in their own
right and would certainly be in the
frame for discussion of targets for
attack in any relevant period.
The Thames Defence Research
Group is open to those with an interest
in researching, recording and
promulgating a knowledge and
awareness of the historic defences of
the Thames. All periods are covered
and the geographical scope takes in the
military, naval (and from the 20th
century) civil and air defence sites from
London to the extremity of the estuary
and the near hinterland.
»» Academic papers have been prepared on
two of the riverside forts and others are
planned.
»» Survey of defensive sites has taken place,
with others scheduled.
»» An updated popular publication on the
generality of the Thames defences is
being researched.
»» A start has been made on an historic
defences trail booklet.
»» Linked with this it is intended to create a
sites database and map available to all.
»» Public engagement through talks and
others means will take place.
»» At a ‘fun’ level it is hoped to produce a
‘Horrible History’ of the Thames defences.
Enquiries about participation to:
Victor Smith BA FSA
65 Stonebridge Road
Northfleet
Kent DA11 9BA
Tel: 01474 323415
Email: victor.defcon1@gmail.com
Simulating the use of a Depression Range-Finder with a
theodolite at New Tavern Fort, Gravesend.
