2 Summer 2012 - KAS Newsletter - www.kentarchaeology.org.uk
Distinctive features of
vernacular buildings of the
17th and first half of the
18th century of the eastern coastal
counties, from Yorkshire down to
Kent, are the pediments and
curves of Dutch, Flemish and
Huguenot – strictly speaking –
Netherlandish, gables.
An enquiry about a former
farmhouse at Hopes Lane,
Northwood led to a five-year
retirement study of these buildings.
With the assistance of KCC’s
Historic Buildings List, numerous
books on all aspects of building
(some ignoring, and others only
mentioning in passing, Dutch
gables - but two stressing the need
for a study), I set about the task. A
paper on buildings (1) with Dutch
influence inspired me to do the
study and analyse the gables.
After many years in estate agency
in Thanet, I understood that these
buildings (around 180 in Kent)
were the result of Protestant refugees
from Catholic oppression in the
Spanish Netherlands. It transpired
that I was wrong and the picture is
considerably more complicated.
Studies of Arch. Cant. and other
sources showed that refugees/
immigrants from the Low Countries
have been coming over here from
at least the 12th century up to
World War Two, when 60,000
arrived. Buildings with these gables
were only built over roughly 150
years. After the English Civil War
and Charles I’s execution in 1649,
many royalists fled to the northern
provinces of Holland, which had
gained their independence the year
before. On the restoration of the
monarchy in 1660, they returned
to England, having acquired a taste
for many things Dutch, particularly
their art and architecture. Like the
fad in the 19th century for all things
Chinese, ‘Dutchness’ became
fashionable. As well as art and
architecture, horticulture
and pottery were imported and
copied (2).
William of Orange (a province
in North Holland) was offered the
throne of England in 1689, thus
furthering the Dutch influence. It
is no coincidence that the main
period of Dutch gable construction
is from 1660 to 1720, but they
appeared before that. The generally
quoted earliest building with a date
(in wall anchors) is 1657 (Longport,
Canterbury), but there are earlier
examples. The best known in Kent,
albeit on larger houses, are at Knole
(additions dated 1603/5), Ford

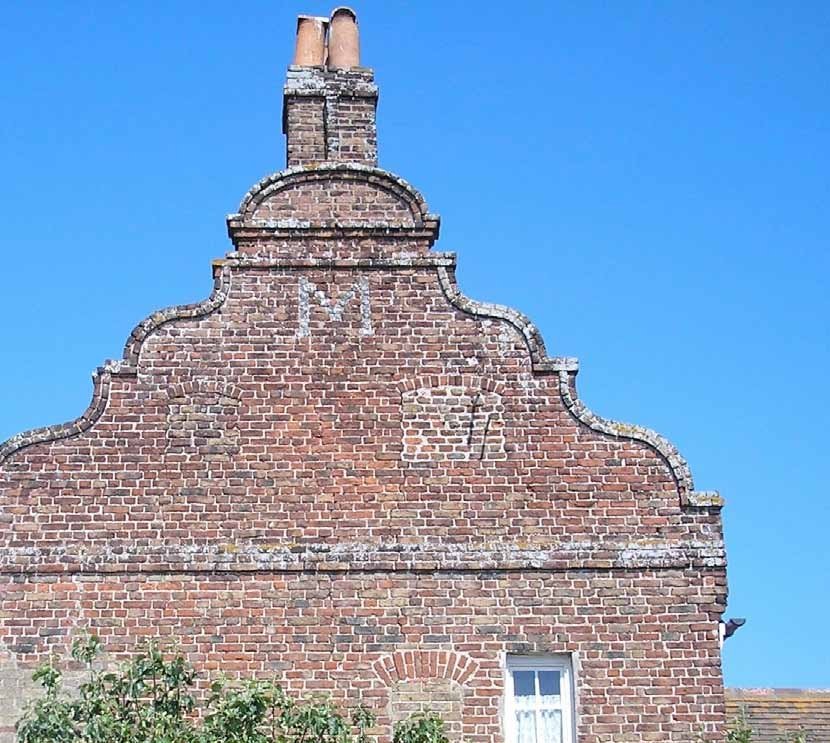

Front page: Hopes Lane, Northwood, Ramsgate, showing bricked-up windows, ‘M’ in flint and double
ogee curves unique in Kent
Broome Park , south of Canterbury 1635-8. Some of the best
early brickwork in England according to Pevsner
The Dutch & Flemish
Gables of Kent
By Gordon Taylor
PART ONE THE BACKGROUND
www.kentarchaeology.org.uk - Summer 2012- KAS Newsletter 3
Place, Wrotham Heath (same date
and both on dormer windows
only) and the wonderful
brickwork of Broome
Park, built 1635 to 1638.
Outside of Kent they are
found as early as 1571 in
Trerice, Cornwall, and
Kirby Hall, Northants
from around 1580 and
at Montacute House,
Somerset at 1598. So
examples, therefore, from
the late 16th century can
be expected on vernacular
buildings; two ‘possibles’
are single-storey cottages
at St Nicholas at Wade
on Thanet, namely
Pepper Alley (originally
three humble cottages)
and Elder Cottage. The
mix of brick and flint
in diapering on the
latter is similar to the
diapering on the
15th century Tonford
Manor, Canterbury.
The Dutch were
known for their drainage expertise
and were in England in the 1560’s.
They are famous for drainage works
in East Anglia (Vermuyden and
others spending many years there
in the late 16th and first half of the
17th century), but they also carried
out schemes on a smaller scale in
Essex (Canvey Island) and in Kent
(Wantsum Channel). In the former
area, buildings can possibly be
linked to them – a cottage (1713)
reputedly having ‘Niet zonder
Arbyt’ (nothing without work) over
the door in Fen Drayton,
Cambridgeshire. Possibly the
St Nicholas examples mentioned
above are from a similar
source. I visited East Anglia to
compare styles.
Traders from the Low Countries
were also responsible for houses
with Dutch gables as at Kew Palace
(formerly ‘Dutch House’ 1631),
SW London “built for Samuel
Fortrey a Flemish merchant whose
family had escaped religious
persecution in France” (3). Topsham,
a port in Devon, has a row of these
houses also attributed to traders
from across the North Sea. Traders
may have been able to afford to
build themselves a house – it is
unlikely that refugees could.
My study has shown, however,
that the main reason for these
curvilinear gables was fashion.
Exactly 50% of the properties
outside of the towns in East Kent
have Dutch gables added to older
buildings that were mostly timber
framed, with Finglesham Farm
having a further extension, this time
in the Georgian fashion. St Peter’s
Farm (Thanet) was built mid-17th
century, had a porch added in 1682
and was refronted in 1710 in the
fashionable Queen Anne style.
Another example is Hode Farm at
Patrixbourne; the original house has
the earlier crow stepped
gable of 1566 with a
curvilinear extension
dated 1674. People
don’t change – fashion
is important. My study
has shown that the
builders of Dutch gables
in England developed
their own distinctive
style; those that try and
match examples here
with those in the
Netherlands are
mistaken and this view
is echoed by others (4).
In the Netherlands the
gables mostly face the
road, whereas here that
is very rare - a row of
three in Sandwich that
did being demolished
in the second half of the
20th century (5).
The second part of
this article (in the
October Newsletter)
will deal in detail with the
pediments, dates and brick bonds.
1. by Arthur Percival MBE MA DLitt (1966). For
his paper, ‘The Dutch Influence on English
Vernacular Architecture with particular reference
to East Kent’, Percival listed the properties with
window hoods, pilasters etc., but included those
with straight gables. He did list two that had had
curved gables straightened that I would probably
have missed.
2. Going Dutch by Lisa Jardine. Also: The
Embarrassment of Riches – An Interpretation of
Dutch Culture in the Golden Age by Simon
Schama. Also: Holland & Britain by Charles
Wilson. Various articles in Bygone Kent.
3. A History of the English House by Nathaniel
Lloyd 1931 re-published 1985.
4. The Cape House & its Interior, 1985 by
Obholzer et al. and Matthew Rice, Building
Norfolk, 2008. Also: Kent Houses by Anthony
Quiney pub. 1993 by Antique Collectors’ Club.
5. Arthur Percival.
St Peters farmhouse, showing Thanet pediment
4 Summer 2012 - KAS Newsletter - www.kentarchaeology.org.uk

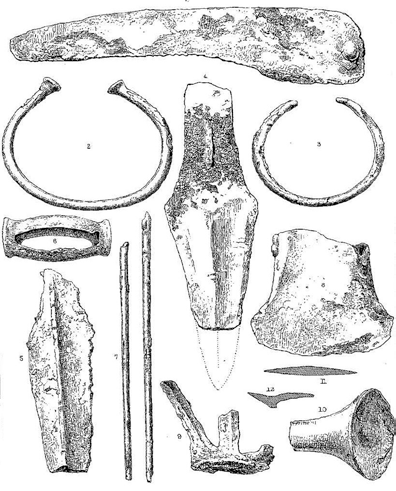

Fig 1: Part of the hoard drawn by Rev. Beale Poste in 1858
Fig 2: Updated version taken by Ian Newton. edition of Longfellows Prose Works
A community archaeology
project in the Weald has
won a national award for
their work in locating the likely find
spot of a nineteenth century Bronze
Age hoard. The collaborative venture
between the Marden History Group
& Heritage Centre, and the writer,
was given the award at the national
conference of the Community
Archives & Heritage Group
(CAHG) last month. Marden
History Group was also named
‘Community Archive of the Year’
- the first time these accolades have
been awarded by CAHG.
Eunice Doswell, from Marden,
describes the three year project as
“a story of community detective
work to solve a Victorian mystery”.
The mystery is in the published
account of the discovery of the
hoard – Late Bronze Age weapons,
tools, ornaments and metal working
debris found buried in an urn in
1858. The Rev. Beale Poste gives
surprisingly precise details about
where they were found, but neither
the name of the farm nor the
meeting point of the two rivers that
he mentions make much sense.
Those who later compiled the
official record of the find were also
confused by Poste’s geography.
Could we do better and pin down
the ‘crime’ scene?
It didn’t quite work out as we’d
imagined – more Columbo than
Poirot or Miss Marple perhaps.
Locating the farmer and the key
witness was relatively straightforward
as both were prominent landowners.
Linking the farmer, Joseph Moren,
to a plot of land called ‘Haye’ or
‘Hayeden’ that was close enough to
two rivers was much more
challenging though, even with the
substantial local records that the
Heritage Centre has collected.
Subsequently, finding a transaction
that included that land took nearly
two years.
We did uncover a land deal
involving the witness, Robert
Golding, from neighbouring
Hunton. He’d exchanged some
fields in Marden at almost the exact
time the hoard had been recovered:
his presence near the scene suggested
he was a very credible witness.
In the meantime we explored the
discovery and hoard in more detail.
The finds had ignited a lively debate
about their dating within the British
Archaeological Association. Poste
claimed they were Roman while the
Secretary of the Association, Syer
Cuming, vehemently disagreed and
sent samples of the surviving pot to
Thomas Bateman, a leading expert
of the day. From Cuming’s archived
letters and published notes we were
able to reconstruct the detail and
flavour of what happened.
The hoard has never been fully
3000 year
old hoard
wins new
national
award for
Wealden
community
archaeology
project.
by John Smythe
Fig 1
www.kentarchaeology.org.uk - Summer 2012 - KAS Newsletter 5
TEBUTT RESEARCH FUND
Grants are available towards research
into any aspect of the
WEALDEN IRON
INDUSTRY
or subjects pertaining to it
Applicants may be individuals or
groups, and the application can
include any associated expenses,
such as travelling and photocopying.
It is anticipated that some £500 plus
will be available from the fund.
The applicant should write a letter
giving details of themselves
together with relevant information
concerning the research envisaged.
David Brown, Hon Sec,
Wealden Iron Research Group,
2 West Street Farm Cottages,
Maynards Green, Heathfield,
Sussex TN21 ODG
www.wealdeniron.org.uk
Registered Charity No. 281485
published; nor has it been seen by
the public since at least the 1960’s,
so we examined and photographed
it in Maidstone Museum’s basement.
It contains items that Poste didn’t
illustrate or mention including,
most notably, part of a flesh hook;
the probable handle of a mirror, and
a worked flint. The photos were put
on a CD by our photographer, Ian
Newton, as a virtual display of
the hoard.
The project also experimented
with field-walking and geophysical
surveying; searched aerial
photographs, and even did some
metal detecting, but it was the
documentary research that
eventually seems to have come
up trumps.
An inspired hunch led Trevor
Simmons to track down the crucial
paperwork in the archives of a major
estate in the county, enabling us to
narrow down the likely find spot to
a single field. Strictly speaking it
doesn’t prove that the hoard was
found there, but this location does
seem to convincingly pull together
the various pointers provided by
Poste. Further fieldwork is planned.
The documentary search
concluded with a talk on the
original discovery, the hoard and
more recent discoveries in Bronze
Age Kent. Over 50 people came
and discussed why metalwork like
this was buried in the ground or
deposited in rivers in such profusion
in the later Bronze Age. The local
press was also there. Present too for
a one night performance were the
entire contents of the hoard. Local
people were able to look at the
bronzes in more detail, and even
handle them for the first time
since 1858.
Fig 2
6 Summer 2012 - KAS Newsletter - www.kentarchaeology.org.uk
WHAT’S ON
KAS EVENTS
KAS at MAIDSTONE MUSEUM
Kent Archaeological Society and Maidstone
Museum supporting the 2012 Festival of
Archaeology http://festival.britarch.ac.uk/
14 – 28 July. Come and visit three new displays
of archaeology projects in Kent; the Meades
Anglo-Saxon cemetery, the Bronze Age Boat
Project and the education work of Canterbury
Archaeological Trust. On Friday 20th July the
President will provide short guided tours of the
new displays in the Withdrawing Room gallery.
On the 20th and 21st July, visit the KAS Library
where there will be displays of the work of the
Society. On Saturday 21st Maidstone Area
Archaeological Group will have a handling
display in the Education Room and at 2.30 there
will be a lecture on the East Farleigh excavation
in the Museum Library.
For more information please check the KAS
website www.kentarchaeology.org.uk/index.htm
KAS CHURCHES COMMITTEE VISIT
Gravesend Sikh Temple (Gurdwara)
Saturday 22 September
Guided tour and a talk about Sikhism by a
member of the temple.
2pm start outside the entrance to the temple,
which is near the junction of Wellington Street
and Saddington Street (postcode DA12 1AG;
grid reference TQ 653 738). There is an adjacent
public car park, and Gravesend Station is about
10 minutes walk. The temple has full disabled
access.
Note that there is a Code of Conduct which
visitors should respect. This, together with maps
and directions, will be available to applicants.
Opened in 2010 and costing more than £13
million, the temple is one of the largest outside
India. It took almost 10 years to build, and is
clad inside and out with granite, marble and
Kota limestone imported from India and worked
by Indian stonemasons. It can house 1,200
worshippers in three large prayer rooms, and the
roof has five elaborate domes. Further details
can be found at www.gurunanakdarbar.org.
The visit costs £5 including light refreshments.
Please register by emailing or telephoning the
Church Visits Secretary, Jackie Davidson:
jacalyn.davidson@btinternet.com or 01634
324004.
KAS LECTURES IN THE LIBRARY
With Dr Jacqueline Bower
Start date 24 September
Morning 10.15 – 12.15
Anglo Saxon England and Jutish Kent,
c.400-1066
This period is one of the fastest moving areas of
study in English history, with frequent new
discoveries and new interpretations. This class
will look at the end of Roman Britain and the
English settlement, the conversion to
Christianity, Alfred and the Vikings and the
Norman Conquest. Questions to consider will
include how much continuity there was between
the Romano British and Anglo Saxon periods,
who were the Jutes, how did England become a
unified nation and what the impact of the
Danish invasions and settlement was.
Afternoon 2 – 4pm
Renaissance, Reformation and Reaction:
Europe 1453-1720
The invention of the printing press was one of
the most significant events in European history,
enabling the spread of new ideas in the
Renaissance and the Protestant Reformation.
The Catholic monarchies responded by
strengthening their absolutist rule, a process
which reached its peak in the reign of Louis XIV
of France. Russia and Prussia began their rise to
become major European powers and the
Ottoman Empire dominated the Middle East.
This class will look at the internal affairs,
international relations and economic
development of the European nations in this
period.
Price £90. To book contact Joy Sage at the
museum or on 01622 762924.
KAS HISTORIC BUILDINGS COMMITTEE
CONFERENCE
COASTAL TOWNS OF KENT AND SUSSEX
Saturday 20 October
9.30 am for 10 am start, 4 pm finish
The theme of this year’s Conference is Coastal
Towns of Kent and Sussex. Main topics include
Sandwich by Sarah Pearson (author of The
Medieval Houses of Kent: an Historical
Analysis), and Rye and Winchelsea by David
Martin (Senior Historic Buildings Officer,
Archaeology South-East).
In the afternoon there will be a talk by Peter
Draper on: Inter-war development and the rise of
suburbia, and short accounts of local research
projects.
Conference tickets £10 each. Lunch (buffet
selection) available £7 each (vegetarian
options). Tea and coffee provided on arrival and
at the close of the day.
Please download the booking form from the KAS
website or obtain one by sending a SAE to Mr D
Carder (KAS), 53 The Ridgeway, Chatham, Kent
ME4 6PB.
Deadline for applications is Monday 8 October.
Further details will be included with tickets.
KAS PLACE-NAMES COMMITTEE
DAY CONFERENCE ON PLACE-NAMES
Saturday 3 November, 10.30 – 4.30
At the Visitor Information Centre, 95 High Street,
Rochester ME1 1LX.
Speakers:
Locative surnames on the move: when Kentish
names leave Kent, and when newcomers arrive,
Paul Cullen (Bristol Centre for Linguistics,
University of the West of England)
The Case of Northminster and other Thanet
mythologies, Richard Jones (Centre for English
Local History, University of Leicester)
The Canterbury Cartae Antiquae Project: a major
source of names, Liz Finn (Kent History and
Library Centre)
Place-names and boundaries, from Goudhurst
to North Woolwich, Paul Cullen (as above)
Tickets £12 each. Please download booking
form from Events section on KAS website or
contact Hon. Sec. Place-Names Committee, Val
Barrand Davies, email: rattersnap@aol.com
tel: 07947 583327.
EVENTS AROUND KENT
PRACTICAL ARCHAEOLOGY STUDY DAY
ONE DAY ARCHAEOLOGICAL WORKSHOP
Organised by Wye Rural Museum Trust and
Canterbury Archaeological Trust, with input from
the KAS, Dover Archaeological Group and
Archaeology at Kent University, to provide
practical experience in archaeological methods.
Saturday 8 September, from 10.00 to 16.00
Agricultural Museum at Brook, near Wye,
TN25 5PF
The day will be run in TWO sessions: morning
and afternoon, and ALL the workshops will take
place in BOTH sessions.
Timetable:
10.00 – 10.30 Coffee and registration
10.30 – 12.30 First Session
12.30 – 13.30 Lunch (not provided)
13.30 – 15.30 Second Session
15.30 – 16.00 Tea and way forward
There will be FOUR workshops covering the
following:
»» Field walking
»» Finds identification & recording
»» Surveying
www.kentarchaeology.org.uk - Summer 2012 - KAS Newsletter 7
WHAT’S ON
»» Geophysics Resistivity &/or Magnetometry
Participants are asked to select the workshops
in order of preference (see application form).
Due to limitations on group size early
application is advisable. However, every
endeavour will be made to ensure that
participants have their first two choices. To that
end, tickets will be allocated on a first come,
first served basis and will be sent out in the last
week of August.
Cost £20 for the day. You are advised to bring a
packed lunch. Application form is available on
the KAS, Museum Trust and CAT website or
direct from Dr S. Sweetinburgh, 11 Caledon
Terrace Canterbury CT1 3JS; 01227 472490;
s.m.sweetinburgh@kent.ac.uk. Please enclose
SAE if using Royal Mail. Cheques made payable
to CAT.
RANDALL MANOR COMMUNITY
ARCHAEOLOGY EXCAVATION
7 – 29 July
This will be our seventh season investigating
Randall Manor. Do visit us and take a guided
tour of the excavations.
This year we will launch the dig with a Medieval
Re-enactment weekend on July 7 and 8.
The site is open every day except July 13 and 23.
Read the site blog on www.facebook.com/
archaeologyinkent. For more information
contact Andrew Mayfield at andrew.mayfield@
kent.gov.uk or 07920 548906.
COUNCIL FOR BRITISH ARCHAEOLOGY
SOUTH EAST CONFERENCE
Marking Past Landscapes (& AGM)
Saturday 13 October
Large Hall, Dorking Christian Centre, Dorking
»» 2.00 Welcome by David Rudling
»» 2.05 Geological Markers (provisional
title) Roger Birch
»» 2.50 Places of significance and
transformation in the Medway valley:
creating the earliest Neolithic
communities in Britain. Paul Garwood
»» 3.35 Tea and AGM
»» 4.15 Netting the land – social context
of prehistoric field systems. Judie
English
»» 4.55 Close
Tickets £10.00 non-members, £8.00 members
and students
Bookings from: Mrs R Hooker, 59 Thornton
Place, Horley, Surrey RH6 8RZ.
Email: rosemary.hooker@blueyonder.co.uk
STUDY DAY at All Saints’
Church, Lydd, Kent
Saturday 22 September
Perhaps better known as ‘the Cathedral of the
Marsh’, Lydd church hosts a large collection of
17 brasses. This Study Day will include a range
of lectures by scholars on the history of the
church, the town, and its townsmen and women,
and examine how the brasses and other
memorials met the commemorative needs of the
medieval and early modern parish. Delegates
will also have the opportunity to examine the
brasses which are normally hidden from view
under the nave carpet.
Cost £20.00 for members of The Monumental
Brass Society, the British Association for Local
History and the Romney Marsh Research Trust,
£40.00 non-members. Concessionary rate of
£15.00 available for full-time registered
students.
A booking form can be downloaded from
http://www.mbs-brasses.co.uk/Lydd_-_
Saturday_22nd_September_2012.doc
Please address any queries to Gill Draper on
development.balh@btinternet.com
LOOSE AREA HISTORY SOCIETY
Monday 8 October
‘The Vestry Meeting’ by Dr Jean Stirk
Monday 12 November
‘Glenn Miller Lives On’ by John and Sue Pearce
Monday 10 December
‘A Country House Christmas’ by Pat Mortlock
Meetings start at 7.30pm and are held at Loose
Infant School Hall, Loose Road, Maidstone.
Further information from our website
www.looseareahistorysociety.webeden.co.uk or
phone 01622 741198.
Orpington and District
Archaeological Society (ODAS)
OPEN WEEKEND OF SCADBURY MANOR
Saturday 8 and Sunday 9 September 2.00
– 4.30pm (last entry). Admission free.
Follow a self-guided trail around the moated
manor site, see ODAS’ excavations, explore the
foundations of the Tudor kitchens and Great Hall
of the house owned by the Walsingham family
Refreshments, bookstall and exhibition about
the history of Scadbury. WC on site.
Access from the public footpath around the
estate. Entrance to the site is where the footpath
passes the moated site. The nearest access
from the road is along the footpath at 14 St
Paul’s Wood Hill; turn left along the circular
footpath, 5 mins walk. From Old Perry Street car
park, the entrance is around 30 mins walk along
the footpath. There is some limited parking at
the site for elderly/disabled visitors: apply with
SAE to ODAS, 28 Church Avenue, Sidcup, DA14
6BU.
For more information about ODAS and Scadbury
see www.odas.org.uk.
SOCIETY FOR CLAY PIPE RESEARCH
CONFERENCE
15-16 September
Vine Baptist Church hall, Park Lane,
Sevenoaks, Kent, TN13 3UP.
The Saturday programme of lectures will focus
on the Kent clay tobacco pipe industry and will
be complemented by displays. In the evening
there will be an optional conference dinner at a
local restaurant. A visit to a local historical
attraction will follow on the Sunday morning.
Non-members of the Society are very welcome
to attend.
Further information is available on the Society
website (http://scpr.co) or from Brian Boyden
(email: brian.boyden@dsl.pipex.com) or Chris
Jarrett (email: cjarrett@pre-construct.com).
THE COUNCIL FOR KENTISH
ARCHAEOLOGY CONFERENCE
RECENT RESEARCH ON ANGLO-SAXON KENT
Saturday 20 October 2 - 5.30pm
The Old Sessions Lecture Theatre, Canterbury
Christchurch University, North Holmes
Campus.
Monastic foundation and the Christianisation of
Anglo-Saxon Kent: A Review of recent excavation
at Lyminge, Alexandra Knox, Reading University
Kentish Anglo-Saxon acquisitions from the
British Museum, Sue Brunning, British Museum
Discovery of a Major Anglo-Saxon Settlement at
Eynsford , Brian Philp
Tickets £5.00 available from C.K.A. 7, Sandy
Ridge, Borough Green, Kent TN15 8HP.
(S.A.E. please).
Website www.the-cka.fsnet.co.uk
This information is correct at the time of
publication.
8 Summer 2012 - KAS Newsletter - www.kentarchaeology.org.uk
I still have a few outstanding non-renewals
– if you wish to renew please send your
cheque to me asap otherwise you will not
receive a copy of this year’s Archaeologia
Cantiana. If you do decide not to renew
please let me know so that I can amend my
database and not bother you in future.
Please remember to send any changes of
addresses etc. to me either by post or
email. membership@kentarchaeology.org.
uk
I look forward to your continued support of
our splendid Society.
I am very pleased to welcome the following
new members:
Joint Members:
Mr and Mrs M De La Mare, Hythe
Mr and Mrs B Matthews, West Wickham
Individual Members:
Mr D Brown, Heathfield, Sussex
Ms M O’Hare, Tonbridge
Mr P J Titley, Longfield
Mrs H Tolputt, Folkestone
Mr J Weir, Chatham
Mr A E L Williams, London SE12
The majority of new members have
joined by downloading the application
form from the website but it is equally
important that blue application forms
are available in other locations and
taken to conferences etc. Please
contact me if you would like a bundle.
Shiela Broomfield, 8 Woodview
Crescent, Hildenborough, Tonbridge,
Kent TN11 9HD telephone: 01732
838698, email as above.
MEMBERSHIP MATTERS
Christopher Pout, former President
and Andrew Moffat, former
Honorary General Secretary of the
Society were elected as Patrons of
the Society at the Annual General
Meeting.
The meeting took place on the
19th May 2012 at Eliot College,
University of Kent and was attended
by 40 members. The Officers were
re-elected and Dr Frank Panton and
Mrs Shiela Broomfield were elected
as Vice Presidents. Mr Mike Clinch
and Mr Pat Harlow were re-elected
to the Council.
Following the formal business
Members of the Council are Trustees
of the Kent Archaeological Society
and as such determine its policies
and actions. If you are interested
in standing for election as a Member
of the Council, or would like to
After a long and distinguished career
with the Kent Archaeological
Society, Mr Paul Oldham has
announced that he will be retiring
from the office of Vice President at
the 2013 AGM. Mr Oldham was
President of the Society from 1998
to 2005 and elected as Vice President
in 2006.
After much thought and
consideration, to bring us into the
twenty-first century we have decided
upon a new logo. This is its first outing
and we do hope you like it.
A.G.M. Elects
New Patrons
Join the Council:
Be Prepared
Vice President
Announces Retirement
Have you just joined
the Society ?
Do you wish you could collect all
the back issues
of Archaeologia Cantiana?
Now you can have 125 volumes
of Archaeologia Cantiana at the
amazingly low cost of £31 for
individual members and £76 for
institutional members on the KAS
Sesquicentennial DVD.
To order your copy, send a cheque
payable to Kent Archaeological
Society to
Peter Tann, 42 Archery Square,
Walmer, Deal CT14 7HP.
members heard three inspirational
presentations by Dr Sheila
Sweetinburgh on Church Study
Days, Mike Clinch on the formation
of the Industrial Archaeology
Committee and Peter Clark who
gave an up to the minute report on
the Boat 1550 BC project.
nominate someone else to do so, it’s
time to start thinking about it!
Nominations have to be received in
writing by the Hon. General
Secretary by the 1st March 2013.
YOU & YOUR SOCIETY
www.kentarchaeology.org.uk - Summer 2012 - KAS Newsletter 9
The Education Committee has
gained some new members, the most
recent recruits being Martin Crowther
(Education Development Manager,
Canterbury Museums) and Abby
Guinness (Community Archaeologist,
Surrey County Council and Canterbury
YAC leader) who came to their first
committee meeting to hear about the
scope of the committee and discussions
for its future role. Currently, members
are all busy with various projects; Kent’s
two Young Archaeologist Clubs with
their full monthly programmes, Thanet
Trust for Archaeology with its project
to develop resources from artefacts in
store for Thanet communities along
with other planned events and
Canterbury Archaeological Trust,
particularly with its ‘Boat 1550 BC’
European project (based on the Dover
Bronze Age boat) and ‘Folkestone, A
Town Unearthed’, now in its final year.
EDUCATION
COMMITTEE
CHURCHES COMMITTEE
Outing to Tonbridge
If, like me, you had consulted your
Pevsner before setting off on a wet and
windy Saturday in April (what else) to
visit Tonbridge School Chapel, you
would have been in for a surprise. At
first sight of the red-brick and sandstone
exterior, with its statue of the chapel
patron, St Augustine of Canterbury,
blessing the cricket pitch, Pevsner’s
description still stands, though some
may have spotted the dark marks on
the facade which tell of the1988 fire
which destroyed the original 1900-02
building by Campbell-Jones.
A war memorial sculpture of St
George and three angels greets the
visitor. In a foyer the school archivist
had mounted a display illustrating the
original building. This showed how
completely the building was destroyed
by the fire, which our knowledgeable
On 14th April about 50 members and
local residents assembled in Holy
Trinity Church, Sandgate Road,
Folkestone, a church built by the
landowner, Lord Radnor, for the
guide, John Smallbone-Smith, called
‘the best thing that ever happened to
the chapel’! Many of us were inclined
to agree with him. Instead of a dark
Edwardian chapel reminiscent of
Southbridge school’s pitch pine and
Munich windows (Angela Thirkell’s
Barsetshire school), the chapel opens
up as one emerges from underneath its
world class Danish-built organ into a
light and airy space of beautifully
panelled oak and tinted windows with
the seating arranged collegially across
the central aisle. The east end is open
with a painted baldachin over the
modern metal altar and a window
containing Kempe glass which has been
collected from various other places.
The architect was Donald Buttress,
who has worked at Westminster and
Chichester. The Chapel serves a school
population of c1000 and is used daily
as well as for ‘occasional offices’ of
baptisms and marriages. The Lady
Chapel contains a mother and child
statue by Peter Hill. Much of the work
was carried out by local workmen and
the modern features have been made
attractive as well as functional. The
directional loudspeakers have been very
successfully integrated into the walls
above the seating by covering them
with what looks like a fine mesh which
blends into the colour of the walls. The
original roof had been barrel vaulted,
but the new one (64’ high) is the
traditional shape of praying hands.
The cost of rebuilding this chapel was
£7,000,000, but for once one can
truthfully say it was money well spent.
Our next port of call was the parish
church of Tonbridge, where the first
boys of Tonbridge School would have
worshipped. Toby Huitson describes
this visit.
Tonbridge was once the largest
parish in Kent. The church of Sts. Peter
and Paul occupies a probable Anglo-
Saxon site, and there is some evidence
of Romanesque masonry in the chancel.
The building was extended westwards
in the thirteenth century, and the north
aisle pillars show an interesting random
polychrome effect using green and
white stone. The mid-fifteenth century
was a time of prosperity, attested to by
wills for painting statuary and the
installation of a rood loft, of which
both no traces now remain. By 1663
there was a west gallery for use of the
school. Such was the demand for space
to accommodate the pupils that an
additional south aisle was constructed
in the late nineteenth century, a space
enclosed in 1983 to create a separate
meeting area. The present appearance
of the church owes much to the work
of Ewan Christian in the 1870s, and
the colourful east window was installed
in 1956.
by Gill Wyatt and Toby Huitson
Gratitude is expressed to Mrs Pat Mortlock
for the informative talk, and to the church
for the tea and cake served afterwards.
Fig 1: Interior of St Peter & Paul, Tonbridge. Photo: Toby Huitson
CHURCHES COMMITTEE
Study day - ‘The Oxford Movement
and its Legacy’.
COMMITTEE ROUND UP
Fig 1
Notes from the By Pernille Richards
Halford L. Mills 10 Summer 2012- KAS Newsletter - www.kentarchaeology.org.uk
growing population as the town
expanded westwards; it was designed
by Ewan Christian, consultant to the
Ecclesiastical Commissioners. After a
welcome by Mary Berg, Hilary Tolputt
explained how ‘filthy, fishy Folkestone’
grew into a fashionable resort in the
19th century, largely due to the coming
of the railway and the popularity of its
healthy site and amenities. Sheila
Sweetinburgh, one of the organisers,
gave a detailed and intriguing exposition
by 13th century William Durandus of
the medieval symbolism of all parts of
a church building.
It was the
publication of a
translation of the
first book (out
of eight) of
his ‘Rationale’ by
the Camden
Society which
influenced the
Oxford movement
as churches were
restored and
new ones built in expanding
Victorian towns.
The main lecture was given by Dr
Michael Chandler, former Dean of Ely
and former Canon Treasurer at
Canterbury Cathedral. He dealt with
the 18th century background of the
evangelical revival and the storm over
Roman Catholic Emancipation in 1829
and the threat to the Church of England
posed by the Whig reforms after the
1832 Reform Act. The Oxford
Movement grew out of John Keble’s
Assize Sermon on ‘national apostacy’
in 1833 and the series of ‘Tracts for the
Times’, started by John Henry
Newman. These were widely circulated
giving rise to the alternative name of
Tractarianism. Other authors
contributed pamphlets on associated
theological subjects. The main issue
was whether the state should have
authority over the church without the
church’s approval; controversy
dominated the church, the Tractarians
being accused of seeking to introduce
popery into the Church of England.
After Newman’s Tract XC in 1841 the
bishop of Oxford banned further
pamphlets. Four years later Newman
was converted to Roman Catholicism
and the informal leader Dr Pusey,
Professor of Hebrew, was silenced by
the university authorities at Oxford
when he preached a controversial
sermon in 1843. Nevertheless, the
movement continued, having an
important influence on parish life
outside Oxford. Dean Chandler then
outlined some of the notable court
cases of the period. These related to
the spread of ritualism which provoked
a backlash and the imprisonment of
some clergy convicted of breaking
the law.
After lunch members were divided
into three groups which rotated
between workshops on documents
illustrating the Oxford Movement in
a Kentish parish, documents connected
with the introduction of ritualism at
Holy Trinity, and a study of symbolism
in Holy Trinity guided by Imogen
Corrigan. The day ended with a
general discussion and thanks to
the organisers.
by Lawrence Lyle
Fig 1: Hilary Tolputt’s lecture in Holy Trinity church
“I should not be able to identify
this place were it not for the assistance
of the Late Halford Mills of
Smarden,..” so wrote Dr. Gordon
Ward in 1945 in his article on the
Lost Dens of Little Chart in
Archaologia Cantiana. The place in
question was a holding near the
charmingly named location
‘Stinckinge Pittes’ near Smarden.
Gordon Ward had come across and
utilised the large collection of
manuscript notes accumulated by
Halford L. Mills (1843-1931), who
devoted many years to researching
the History of Smarden with the
intention of publishing a History
as a tribute and follow on to The
Antiquities of Smarden written by
the Rev. Francis Haslewood and
published in 1866.
Mills was of an entrepreneurial
nature and became a local historian
late in life. He was born in Smarden
in 1843, but left for London as a
young man, where he became the
proprietor of the Reformed Funeral
Company, which specialised in
cremations but also offered an
embalming service. Mills had learnt
this art at the United States School
of Embalming. Mills also became
involved with coach building and
publishing and he owned a small
farm near Chalfont St. Giles.
Eventually he ceased to run the
Funeral Company; it appears due
to difficulties in business. He moved
back to Smarden and in the 1920s
COMMITTEE ROUND UP continued
Fig 1
the Archive
Mills of Smarden
www.kentarchaeology.org.uk - Summer 2012 - KAS Newsletter 11
Fig 1: Halford L. Mills ( 1843-1931) courtesy of the Smarden Local History Society.
Fig 2: Members of Smarden Local History Society at work. The Society welcomes visits from the public to their premises at Smarden Charter
Hall on Friday mornings from 9.30 a.m. Closed Easter & Christmas.
we find him living in Claggett
House researching local history and
seeking subscribers for his proposed
book. A box of Mills’ papers
containing letters and forms from
prospective subscribers to his book
have been found in the KAS
Archive. The box also contained
research relating to the Baptists of
Smarden, fascinating information
on local people, historic buildings,
changes in farming locally and
weather records. Sadly, Mills never
did get enough subscribers to
publish his book on Smarden’s
History, although many did sign
up, including the Hon. Henry
Hannen, but he contributed
to the local paper and
published other works
including a booklet on the
Smarden Church Bells in
1922. The final item he
published was an Article in
Archaeologia Cantiana on
The Dating of Timber Houses
in the Weald of Kent which
was submitted only a few
weeks before his death on
October 10th 1931.
Mills’ papers were contained in
a rather sorry looking box. It was
water and soot stained from the
1977 Fire at Maidstone Museum
and judging from the address labels
it had travelled around a bit. A little
research identified the papers as part
of the ‘lost archive’ of the Smarden
Local History Society. According
to Alex Ferris from
Smarden Heritage
Centre, the first
Local History
Society in Smarden
was established in
1931 by the
Curate and Miss
R a t h b o n e .
Activities ceased
during the war and
in 1955 the Society was wound up
and the archive of local history
material, including the Mills papers,
were dispersed. Some papers ended
up at Kent Archives, some with
private individuals and some with
the KAS. In 1995 the Smarden
Local History Society was reformed
and has since gone from strength
to strength. It has a very active
membership and interest in Mills’
research has blossomed resulting in
the return of most of the papers to
Smarden Heritage Centre where
they have been catalogued and
archived to a high standard.
A digital copy of his History of
Smarden has also been published
thereby belatedly fulfilling Mills’
ambition. The papers are a valuable
resource for the study of the locality
and contain wonderful details on
all aspects of Smarden life. The
information on local buildings
has proved especially popular
with residents researching
their historic properties. It
seemed right that the newly
discovered box should join
the main collection in
Smarden Heritage Centre on
loan. Alex Ferris said, “We
are really pleased that the
papers have come home to us,
they mean a lot to us locally. We hope
to build an extension to our facilities
in Smarden Charter Hall so we will
have more room for our growing
Archive and artefact collection.” It
is pleasing to know that other local
historians will have cause to echo
the sentiment of Gordon Ward and
find Mills’ work useful.
Fig 1
Fig 2
12 Summer 2012 - KAS Newsletter - www.kentarchaeology.org.uk
NEW BOOKS
BUCKLAND ANGLO-SAXON CEMETARY, DOVER. EXCAVATIONS 1994
(Keith Parfitt and Trevor Anderson). Canterbury Archaeological Trust
ISBN 978-1-870545-23-5
The 1994 excavations at Buckland, Dover, uncovered another 244 graves in the extensive
Anglo-Saxon cemetery first excavated by Professor Vera Evison in 1951–3. Just over two
thirds of the burials contained grave goods. Several male burials contained a sword, others
a spear and sometimes a shield. Women’s graves included brooches and beads and a variety
of other objects.
This detailed study of the cemetery, the individuals interred therein and specialist reports
on their grave goods also includes specially commissioned reports on Anglo-Saxon costume
and textiles and on the technology of the metalwork. There is an extensive illustrated
catalogue of all the graves and grave goods.
The excavation was undertaken by Canterbury Archaeological Trust with the assistance
of the British Museum. The developer (Orbit Housing) has donated the entire corpus
of finds to the British Museum and many of these will be part of the new displays when
Room 41 (Europe: AD 300–1100) re-opens in 2013.
Those with an interest in Anglo-Saxon Kent will know only too well the frustrations of obtaining the now out of
print monograph on Evison’s excavations. It might be advisable to add this new book to your collection sooner
rather than later!
Normal price from Oxbow Books (01865 241249) £35.00 - special offer to KAS members of £30.00. Please quote code KASBUCKLAND
when you email your order - orders@oxbowbooks.com or insert the code in the comments section if ordering online -
oxbow@oxbowbooks.com Personal callers are also welcome at the Trust’s offices, 92A Broad Street, Canterbury.
GAVELKINDERS to GENTLEMEN
The result of a lifetime of research into the origins and early history of the Lushington family
of east Kent. Over 30 family charts help the reader to follow the complex history of the
family. The family’s progress, from the 13th century, is linked to local and national events,
using a wealth of contemporary documents. A comprehensive index of families linked to
the Lushingtons in the Alkham area will be of great value to all genealogists who are
interested in this area of east Kent.
Produced privately in two versions, A4 soft cover and PDF Disc. 332 pages; fully illustrated
using contemporary sources and local history publications.
Book - £38 + £6 p&p, or CD - £25 incl p&p, are available from the author: jrclushington@yahoo.co.uk
www.kentarchaeology.org.uk - Summer 2012 - KAS Newsletter 13
NEW BOOKS
DISCOVER MEDIEVAL SANDWICH
Helen Clarke
Sandwich today is a quiet town on the banks of the River Stour, where small pleasure
craft tie up at The Quay. It is hard to imagine its wide expanse of water in medieval
times, Sandwich Haven, which provided an anchorage for every sort of vessel from
Anglo-Saxon longships preparing to take on Viking invaders to fleets of Venetian
galleys laden with exotic cargoes. The present town is probably the most complete
preserved example of a small medieval town in England.
Its history has been the subject of a long-term collaborative project which brought
together experts from many disciplines, and which has now been published in an
academic monograph. The story is too interesting and important to be confined to
a specialist academic audience however, and Helen Clarke has succeeded in this book
in making the research available in an attractive, accessible and affordable form.
The book describes medieval Sandwich and its development over the centuries. Its
houses are its chief glory and many are illustrated in the book. The people of the
town are also brought to life: mayors and MPs, brewers and bowling alley owners. All have left their mark.
Oxbow Books 104pp, full colour throughout. £12.99.
UNDERGROUND THANET
Rod Le Gear
Underground sites form part of Thanet’s rich archaeological heritage. Along with the natural
sea caves that were carved into Thanet’s chalk landscape, chalk has been quarried, mined and
tunnelled by man for thousands of years.
Wartime threats led to refuges such as Ramsgate’s Air Raid Tunnel complex. Margate Caves
and Shell Grotto show that tunnels and caves of earlier times were attractions for seaside
tourists. Innumerable lesser known examples such as dene holes, seaweed tunnels, well shafts,
mines, lime kilns and hidden chambers form part of the hidden history of the Isle of Thanet.
Rod Le Gear, founder of the Kent Underground Research Group (KURG) and an active
member of KAS since 1963, has produced a highly readable account of the history of
underground sites in Thanet. With 90 pages of text, fully indexed and richly illustrated with
full colour photographs and diagrams, Underground Thanet details the exploration of many
of the sites by the author and KURG.
Underground Thanet is the first of a new series of publications from the Trust for Thanet Archaeology.
A5 format. £9.99 + £2.00 P&P. Special offer for KAS members of £8.00 + £2.00 P&P.
Please state that you are a KAS member when sending in your cheque.
Download order form from:
http://thanetarch.co.uk/trust/sales/sales_img/UGT_web_order_form.jpg
14 Summer 2012 - KAS Newsletter - www.kentarchaeology.org.uk
The Visual Records group meets on
Wednesday mornings in the KAS
Library in Maidstone Museum and
works on indexing the Society’s
collection of images. More than 20,000
images have been indexed so far and
new ones are being added all the time.
Many of these are part of the historic
collection of images from the early 18th
century to today, but new donations
also add to the stock of images. Mike
Perring has been part of the Visual
Records team since the early 1990s
when he was recruited by the then
Hon. Librarian, Peter Draper, to work
on indexing the collection of plates. “I
came in to find images of Thurnham and
started working with June Dyer on
indexing plates. Later we moved on to
indexing all images held by the Society,”
recalls Mike. “The idea is, of course, to
make people aware of what a good
collection of prints, engravings, paintings
and slides etc. we have.”
Initially, the images were manually
listed on index cards by volunteers, but
soon the records
were moved onto
the computer and
the Visual Records
Catalogue can now be searched on the
Society’s webpage. The remit of the
team also rapidly grew from plates
to the entire collection of images
and maps. “We have a large collection
of images of churches; the collection of
V.J. Torr is very good as it records changes
in the same churches over the years. Some
of these churches now no longer exist; they
were bombed during the war. Some
of his photographs show bomb
damage around Canterbury Cathedral”
says Mike.
The group is now embarking on a
project to digitise images, especially
watercolour paintings and the old glass
plates, in order to make them more
accessible. Many prints have been
photographed and a programme of
scanning glass plates and old photos
has just commenced, initially focusing
on photographs of old Maidstone and
plates from Cobham. The plates are
particularly rewarding as the images
come up beautifully sharp on the
computer. In due course it is hoped
to share some of these images with
members in the Newsletter and online.
If you wish to consult the KAS
Visual Records, or just want to come
along to see what is going on, then
come to the KAS Library in Maidstone
Museum on a Wednesday morning
between 10. 30 a.m. and midday and
meet the group. Please remember your
KAS membership card and sign in at
the front desk in the Museum.
Currently there are seven people
working on the Visual Records in the
Library on a regular basis, too many
to mention by name, but all working
on preserving and recording these
wonderful images for the use of KAS
members in their researches.
Family in the Kent Hopfields from the Edwardian era
The Leather Bottle Cobham
20,000 - Not out!
The Work of the KAS
Visual Records Team
www.kentarchaeology.org.uk - Summer 2012 - KAS Newsletter 15
Insert: View of the excavation looking east, showing from right to left standing south
wall of building 3, footings of south wall of building 2, conjectured wall of building 2A,
with corn dryer in centre of picture, and north wall of building 3.
The Maidstone Area Archaeological
Group (MAAG) has been investigating
a number of Roman buildings
overlooking the River Medway off
Lower Road, East Farleigh since 2005.
This was initially reported in Newsletter
no.76 with subsequent updates in
no.79, no.82, no.84, no.86, no.88 and
no. 90.
Excavations in 2011
concentrated on excavating
a further section of the
Iron-Age ditch underlying
the kitchen building
(building 5) and uncovering
the central section of the
two barn buildings
(buildings 2 and 3), which
overlay each other.
In building 2 the main
door had a 3.2 metre wide
opening located on the
south side. The south wall
extended further to the west than the
east, indicating that it was not central.
The floor was of beaten earth. The walls
consisted of ragstone 450mm wide on
a 600mm wide mortared foundation,
on 700mm plus of trench-fill dry
ragstone.
North of this wall, and about 2 metres
from it, is another wall built of dry
stone 300mm wide on a 600mm wide
large stone base. This is interpreted as
the foundation of a timber framed
building which superseded building 2.
This in turn was demolished and
replaced by building 3, a barn 28
metres long by 8 metres wide with a
3.6 metre wide doorway mid-way
along the south side. The floor in the
western side of building 3 consisted of
compact burnt sandy-clay with a long
flue corn dryer built into it. A clay
ramp led down from the door on to
the earth floor in the east side of the
barn. Coins located in building 3
indicate that construction
took place around AD 250.
Only a few small finds were
located in 2011.
The buildings were
backfilled for the winter. It
was thought that the sale
of the site would necessitate
the excavation having to be
closed down, however, the
new owner is keen for us
to continue our
investigations. This year it
is hoped to locate further
buildings by the use of
geophysics and trial pits.
Excavation of the site has now resumed and
anyone interested should contact maag.info@
virginmedia.com or 01622 762422.
LETTER
East Farleigh Fieldwork Update 2011
Dear Editor
I have attached a copy of a photograph that I found in
my mother’s papers. The print is only 3 ¼ by 2 ¼ inches
and taken sometime during the 1930’s or possibly earlier.
It is clear enough to show some details so I am sure it
would be recognisable if the building is still around. It
shows an old farmhouse - two timber framed buildings
with a Kentish ragstone wall at the end, and an oast with
a window inserted - not quite an early conversion but
obviously no longer used as an oast.
The site is likely to be in North West Kent as Mum came
from Bromley Common. She was a keen walker so the
area could be widened out from there. As she had mounted
the photo in an album the picture must have had some
significance to her so I am curious to find out more about
it.
I hope someone can identify the place.
Pat Hopcroft
Please contact the editor on
newsletter@kentarchaeology.org with information.
SCALE – 5 metres
East Farleigh Roman Buildings Buildings 2, 2A and 3 Dec 2011
Published by the Kent Archaeological Society, Maidstone Museum and Bentlif Gallery, St Faith’s Street, Maidstone, Kent. ME14 1LH.
16 Summer 2012 - KAS Newsletter - www.kentarchaeology.org.uk
If undelivered, please return to
S. Broomfield, 8 Woodview Crescent,
Hildenborough, Tonbridge, Kent TN11 9HD
Copy deadline for the next issue is 1st Sept 2012
The editor wishes to draw attention to the fact that
neither she nor the Council of the KAS are answerable
for opinions which contributors may express in their
signed articles; each author is alone responsible for
the contents and substance of their work.
EDITOR: LYN PALMER
55 Stone Street, Tunbridge Wells, Kent TN1 2QU
Telephone: 01892 533661
Email: newsletter@kentarchaeology.org.uk
With the co-operation of the staff at
Knole, the KAS Historic Buildings
Committee organised a visit to those
parts of the building that are not
normally available to the public and
indeed, after the restoration work, will
not be seen in their original state again.
Comments from the group included
the following:-
“It was a most successful visit to Knole
with a stunning tour guided by both
the Property Manager, Helen, and the
Archaeologist, Natalie, to parts that
could not otherwise have been reached.
We were indeed privileged to learn how
the National Trust’s plans for the future
of the property are being produced -
depending as they do on the success of
the NLF submission and a public
appeal yet to be launched. It is good
too, to know of the great care that will
be taken to retain the unique
atmosphere of the place, and that the
present Lord Sackville is fully supportive
of it all.”
“As regards comment, ours would be
simply that the visit was probably
unique - just after the launch of the
appeal for Knole - and an opportunity
to see parts that are simply not going
to be seen by the public for a long
time.”
“We climbed narrow staircases to attic
rooms and galleries that showed the
effect of the ravages of time and the
results of an endless cycle of repairs and
patches. Some had been used as
repositories for unwanted furniture and
pictures. Browsing through these
evoked interest and curiosity. The
specialist expertise of individual
members of the group was in some
cases able to suggest how items could
be restored.”
“Finally we climbed the spiral staircase
to the top of the tower to view the deer
park from an unrivalled vantage point.”
There was a general request for more visits
of a similar nature. Suggestions please!
KNOLE VISIT By Christopher Proudfoot
